Machining Capabilities

Milling, turning, vertical turning, fabrication, welding and finishing all happen under one roof, so a part is not chasing three vendors and four freight legs to get finished. Every machine below is on our floor in Canandaigua. Size your part against it before you send a print.

Largest We Can Hold
Turn diameter72″
Mill travel84 × 40 × 30″
Boring travel78 × 59 × 50″
Waterjet workpiece120 × 60 × 6″
CNC Vertical Milling
Machine — X × Y × Z
Haas VF-9 / 502 machines — 4th axis w/ tailstock
84 × 40 × 30"
Haas VF-8 / 50
64 × 40 × 30"
Haas VF-6 / 50
64 × 32 × 20"
Mazak VC-EZ26
50 × 26 × 25"
Mazak VMC2 machines
41 × 21 × 20"

Largest table 84" × 36". Seven machining centers, all 40/50-taper capable of heavy roughing and finish work in one setup.

Haas VF-6 vertical machining center with a rotary table set up on the bed at Dennies Manufacturing

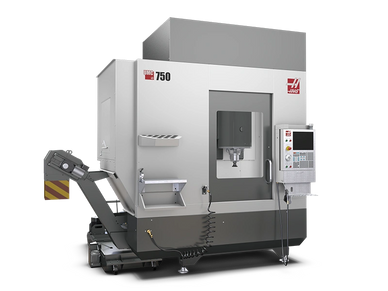

5-Axis Machining
Haas UMC2 machines — 19.7" dia. table
30 × 20 × 20"
Mazak VariaxisPallet changer
14 × 22 × 20"

Full simultaneous 5-axis for contoured and compound-angle features without re-fixturing.

Part set up on a rotary fixture inside a Haas machining center at Dennies Manufacturing
Horizontal Boring
Kuraki Horizontal Boring Mill
78 × 59 × 50"
Rotary tableFull 360 degrees
63 × 55"
Quill travel
25"

Programmable 4th, 5th and 6th axes with L-head and reversing head. Large housings and weldments bored complete in one setup.

Kuraki KBT-11WDX horizontal boring and milling machine at Dennies Manufacturing
Sawing, Drilling & Support
Cosen Band SawAuto horizontal dual-column
12.6 × 12.6"
FlexArm Tapping14–50" working range
To 5/8" tap
Manual Vertical Mills
6 machines
Manual Horizontal Mill
1 machine

Manual capacity keeps one-off repairs, fit-ups and rework off the CNC schedule, so production jobs stay on time.

CNC Turning
Machine — Max Turn Dia. × Length
SMEC SL 3500ALYLive tooling, steady rest
17" × 83"
Haas SL-3015" chuck
17" × 34"
Mazak QT2 machines — 10" chuck
14.8" × 21"
Manual lathes6 machines
22" swing

Axial and radial live tooling lets turned parts come off complete with cross-holes, flats and keyways.

SMEC SL 3500LY turning center with a shaft between chuck and tailstock
CNC Vertical Turning
Machine — Swing × Height
Shibaura TUE-15057" chuck, 66" table — live tooling
72" × 35.4"
Bullard VTL70" table
70" × 42"
Mazak VTL36" chuck — live tooling
39.4" × 34.5"

Three vertical turning cells to 72" diameter — large rings, housings, flanges and bearing seats.

Shibaura vertical turning lathe on the floor at Dennies Manufacturing
Waterjet & EDM
OMAX Abrasive WaterjetMax workpiece
120 × 60 × 6"
Wire EDMMax workpiece 41 × 32 × 12"
19.7 × 13.8 × 11.8"
Sinker EDMElectrodes to 66 lb
7.9 × 4.7 × 9.5"

Waterjet cuts blanks and profiles with no heat-affected zone. EDM for hardened material, internal corners and keyways.

Mitsubishi FA20S wire EDM at Dennies Manufacturing
Quality & Documentation
First Article Inspection
On request
Certificates of Conformance
On request
Material Certifications
Mill certs
Material TraceabilityMill certs retained against each job line
By line item
Inspection & Metrology
Machine — X × Y × Z
Sheffield Endeavor 12.15.10DCC coordinate measuring machine
47 × 59 × 39"
Keyence Handheld CMMPortable, probe-based
Large-part
Optical ComparatorProfile and small-feature inspection
20× lens
Rockwell Hardness TesterIncoming and post-heat-treat verification
In-house

Sheffield for fixtured first-article work; Keyence handheld for parts too large to bring to the bridge.

Sheffield coordinate measuring machine on its granite table in the inspection room at Dennies Manufacturing
Fabrication & Welding
CNC Press Brake3-axis
10 ft — 150 ton
Plasma CuttingStainless
To 1" thick
Shears3 machines
6 ft — 12 ga
Plate Rolls2 machines
To 3 ft wide
MIG Welding
2 stations
TIG Welding
2 stations
Gas Welding
2 stations
Welding Qualification
ASME Sec. IX

Weldments built and machined in the same building — no shipping a fabrication out and back for final machining.

Grinding & Finishing
Okamoto Surface GrinderAutomatic
16 × 32"
Jakobsen Surface GrinderHydraulic
10 × 18"
Mitsui Surface GrinderManual
6 × 12"
Laser MarkingSerialization, date codes
8 × 8 × 12"
Paint BoothL × W × H
14 × 6 × 8 ft

Three surface grinders on site for close-tolerance finishing and hardened material.

Okamoto surface grinder in the grinding bay at Dennies Manufacturing
